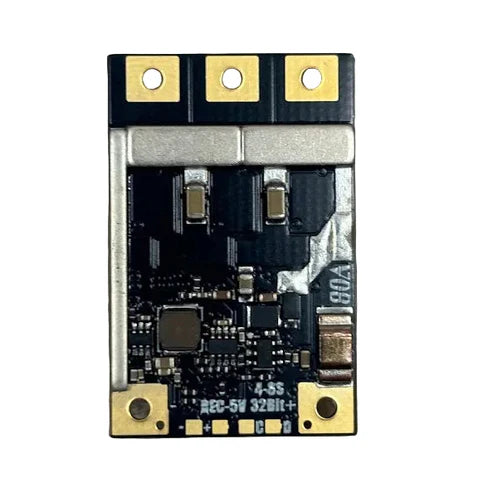

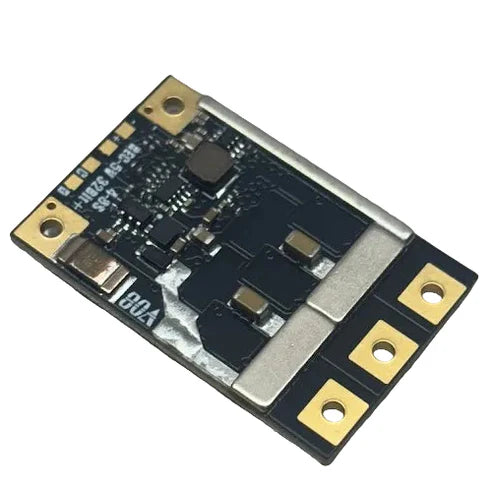

Have you been looking for a weapon ESC to keep up with the most demanding weapons out there? What about a drive ESC for your bigger bots (12lb or 30lb)? Want a bigger bot esc that comes with a BEC to power your receiver? We've got an esc that does all of these things without breaking the bank! Used in Ammonoid on drive during its 2025 motorama win. Also tested up to 8S on various beetles including Unga Bunga, Teeny Hex, Big G, and various others.
Specification:

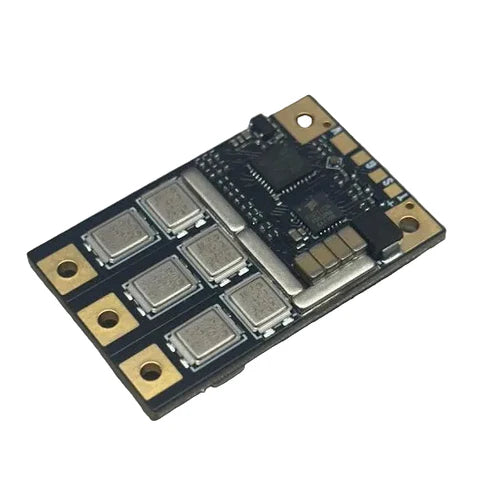

Comes with heatsink for the FETs.
Size: 36.2 x 24.3mm
Weight:
9g just esc
11g with heatsink
20g with cables and cap
BEC: 5V 3A
Voltage: 10.8V-33.6V (3-8S) lipo battery

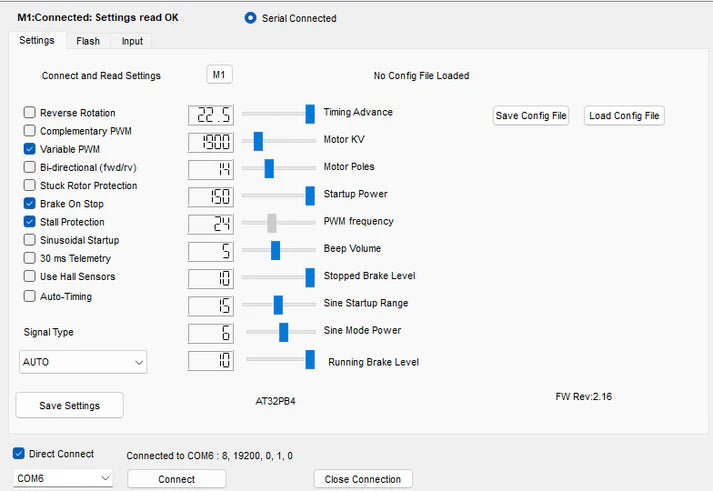

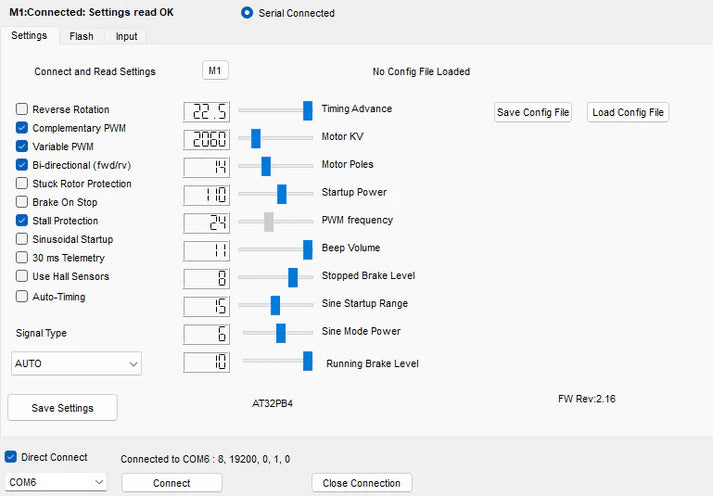

Firmware: AM32
Continuous current: 80A
Burst current: 90A(Instant)
Peak power: 2000W(Instant)
PCB board: 6-layer board with a copper thickness of 3oz inside and outside
As of 6/15 - Comes with low ISR 680uf capacitor
As of 6/15 - Comes with pre-soldered signal and power wires

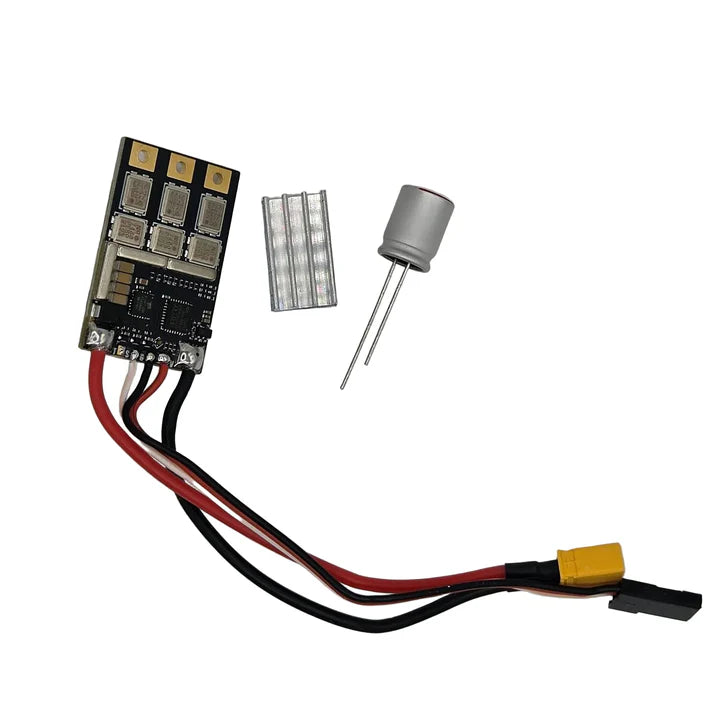

Package includes:
- 1pcs AM32 firmware single ESC
- 1pcs aluminum heat sink
- 1pcs 35V 1500uf high frequency electrolytic capacitor
