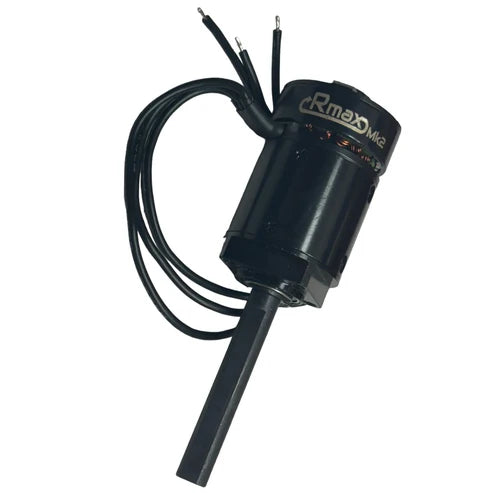

Max Brushless 2006 Mk2 - Beetleweight planetary gearmotor

Does your beetleweight need more drive power? Not happy with any of the options on the market? Tired of trying to put your own shafts into a 2xxx motor to get all the torque??? Repeat drive max V2 is an improvement on the original. It comes with a 2100kv 2006 brushless motor mated to a 24mm 27:1 planetary gearbox designed to be the toughest beetleweight drive motor on the market.

As of 6/2024 max has moved to V2, including M3 mounting, square faceplates, and a larger 2006 motor directly integrated into the gearbox

Upgrades from Mk2:

• M3 Faceplates come standard. No need to buy them separately

Features:

• 66g weight
• 4x19mm M3 face mount hole pattern
• 2s-6s rated voltage
• 24mm, 27:1 all metal planetary gearbox

• Custom "D" Shaft pinion gears eliminate pinion slip!
• Custom wound 2006 brushless motor directly integrated into the gearbox
• 6mm "D" extra long output shaft (cut to the length that you need to save weight)
• Custom billet 4130 final planet carrier and output shaft
• Output shaft c-clip has been changed to minimize the groove and provide the strongest product.
• Faceplate comes with flats built in to facilitate clamp mounting.
• Motor is integrated into the gearbox to minimize footprint.

Performance

• 12V input (3S) 863rpm free speed
• 14.8V input (4S) 1151rpm
• 22.2v input (6S) 1726rpm

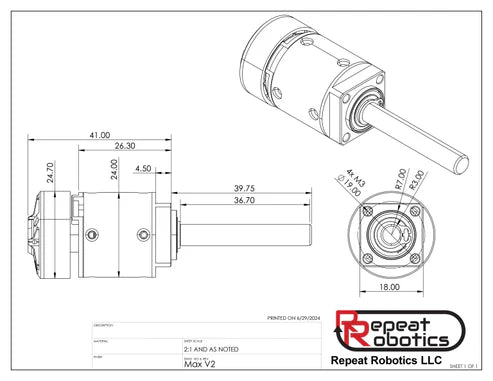

CAD model

https://grabcad.com/library/repeat-drive-max-1

Re-greasing is recommended for high voltage usage and improved performance. Replacing the grease with a thinner grease or oil will reduce load and heating.
