- 6mm hardened steel shaft, 40mm length
- Durable 24mm Max gearbox
- High power 130 motor
- 71g overall weight
- 4x M3 tapped mounting holes
- 18mm square on the front of the motor for keying
- 27:1 gear ratio
- 12V specs:
- 1070rpm free speed
- 5.25kg.cm stall torque
- 6A stall current
Pairs great with the Dominion Dual Drive ESC: https://repeat-robotics.com/products/dominion-dual-brushed-drive-esc

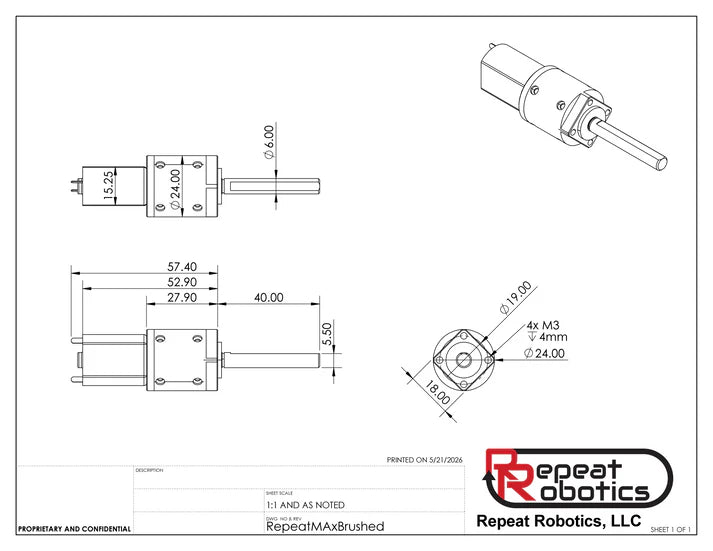

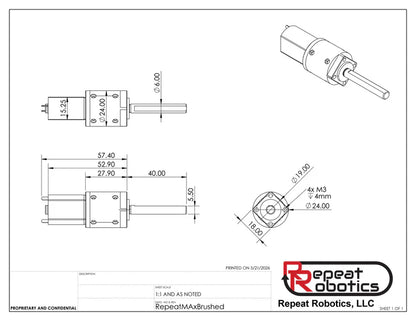

Find CAD here: https://grabcad.com/library/repeat-max-brushed-1
If you find the motors stuttering when driving them, running them in for a while and a 0.1 uf capacitor across the motor leads can help.
