- Billet 4mm hardened steel shaft, 25mm length
- Dual bearings on the gearbox output shaft
- High power 130 motor
- 45.5g overall weight
- Ring gear squared to 16.5mm flat to flat
- 22.6:1 gear ratio
- 12V specs:
- 1070rpm free speed
- 3.85kg.cm stall torque
- 4.3A stall current

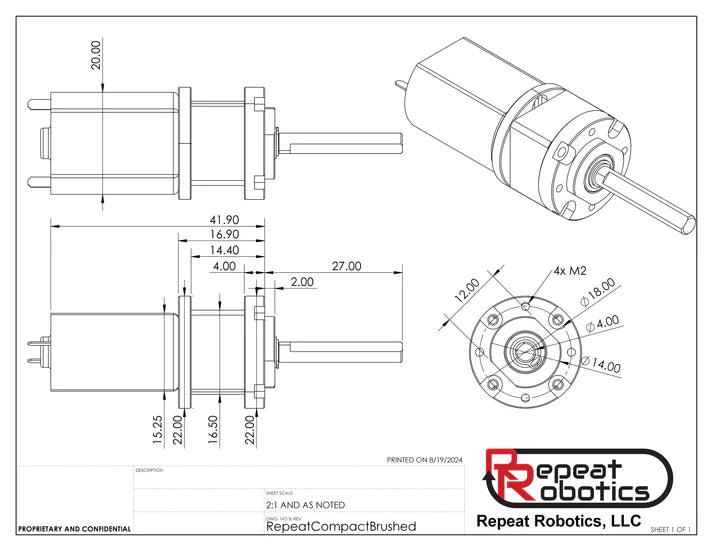

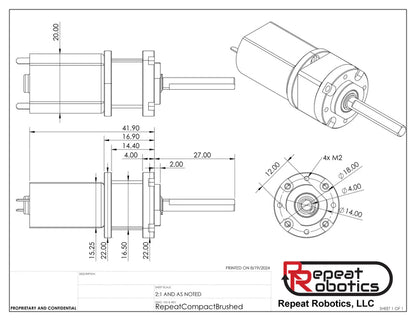

Find CAD here: https://grabcad.com/library/repeat-compact-brushed-1
Pairs great with the Dominion Dual Drive ESC: https://repeat-robotics.com/products/dominion-dual-brushed-drive-esc/
