Features

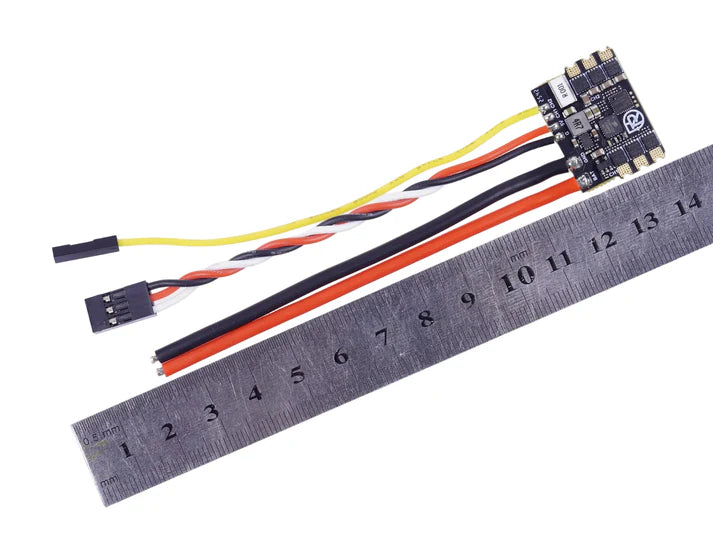

- Small size - 28 x 20 x 5 mm
- 6g with signal wires
- 2-6S voltage rating
- Integrated 5V BEC output to power receiver
- Active current limiting on each channel (Comes with current limit enabled)
- Pre-programmed with bidirectional drive settings
- Power pads on both sides of the board allow you to solder your weapon ESC to the bottom side of the board
- Equivalent components to 45A drone ESCs
- Does not have mixing functionality
- Suitable for 1lb to 3lb robots
- Suggested 4A-8A current limit for 1lb-3lb robots
- Can be used in larger robots with appropriate current limits

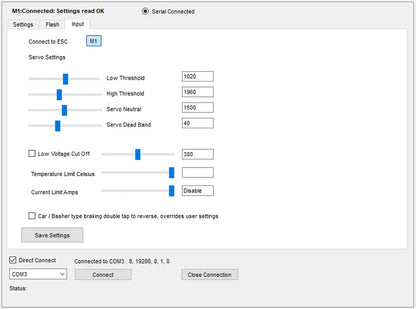

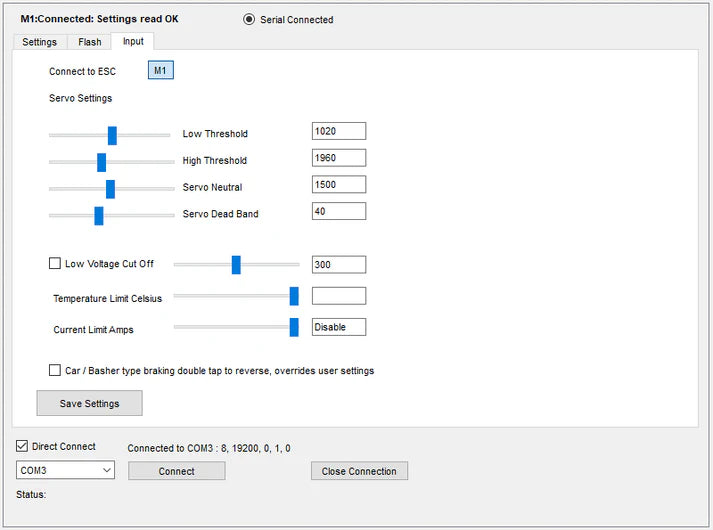

Find the most up to date version of the AM32 configurator tool here: https://am32.ca/downloads Look for the profile for AM32_RR_ROBOT_DUAL_ESC_F421

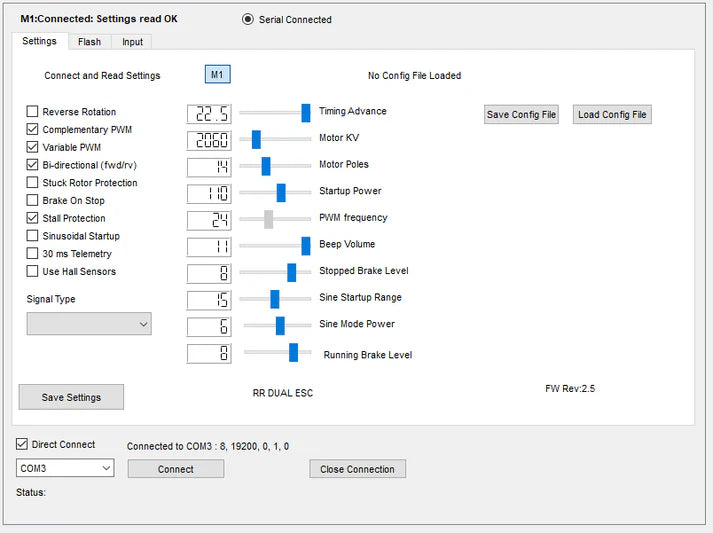

If your motors are moving slower than anticipated try updating the KV setting.
